LC-LC

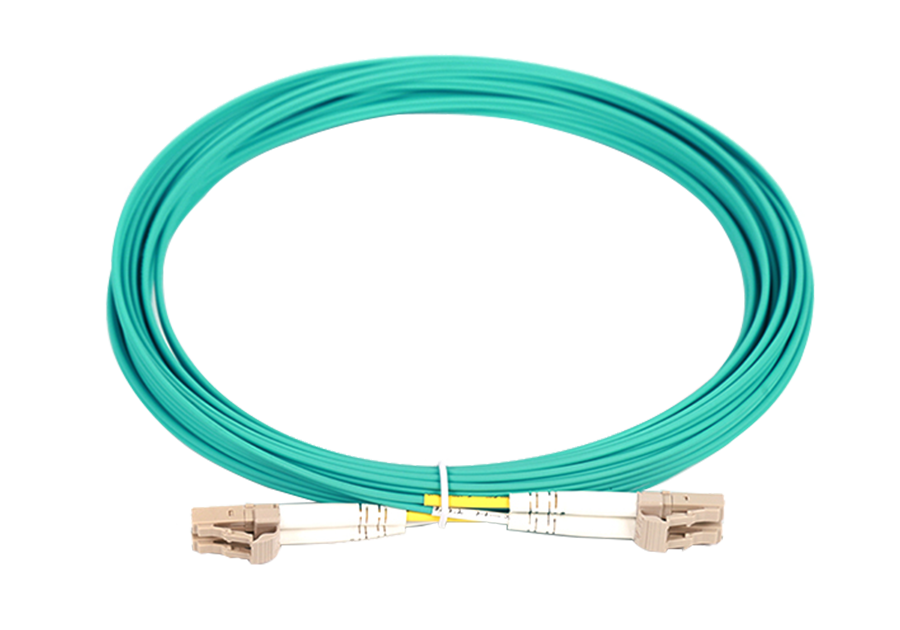

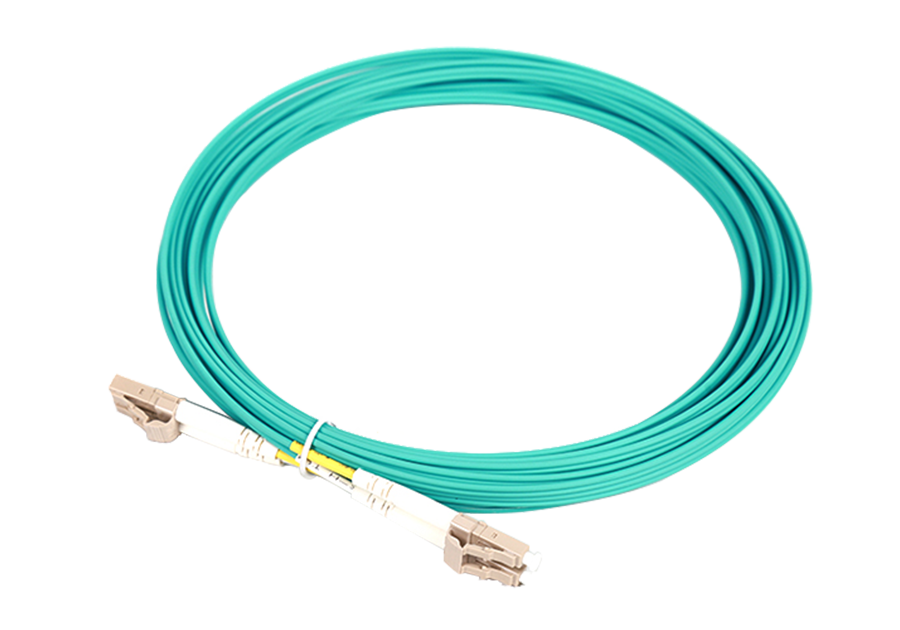

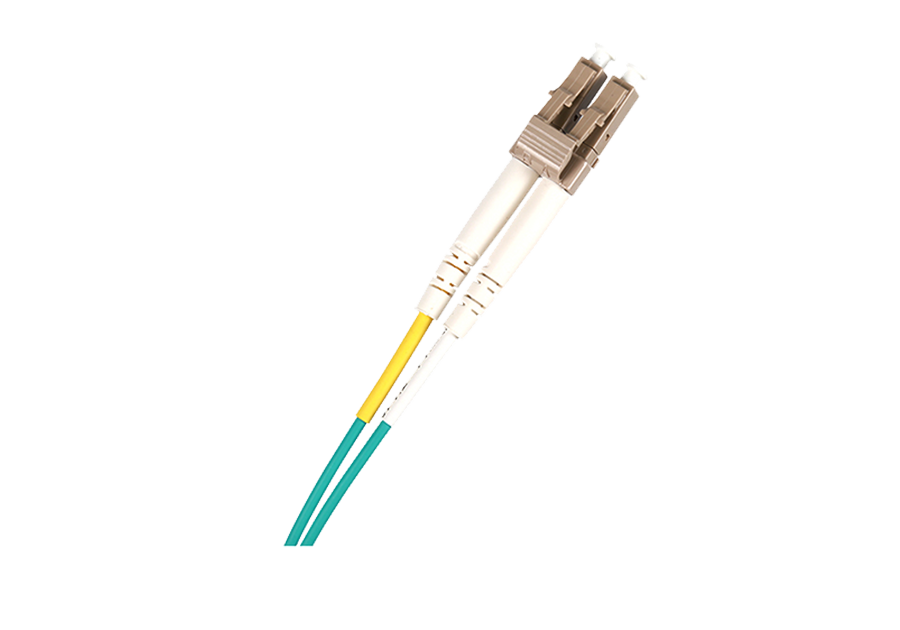

LC-LC dual core OM3 multimode fiber patch cords use advanced equipment and the industry's strictest production testing standards, and their optical and mechanical performance meets Telcordia and IEC standards. The product adopts Japanese Kyocera ceramic pins to ensure excellent quality, with excellent performance, stability and reliability, and very small insertion loss. By introducing the most advanced grinding technology and equipment, we ensure that the center of the fiber is ground and offset, the fiber is concave, the fiber surface is scratch free, and the size of the ceramic end face curvature radius and other technical parameter standards make it convenient and comfortable for you to use.
  • Product features: Low insertion loss; High return loss; Good repeatability; Good temperature stability; Good interoperability.
  • Product application: signal transmission and data transmission; Telecommunications network, local area network (LAN), metropolitan area network, fiber optic communication system; Fiber optic testing instruments/meters; Fiber optic cable TV (cable television), fiber optic sensors; Fiber optic broadband to home, FTTH fiber optic to home; Fiber optic distribution frame, rack mounted and wall mounted fiber optic distribution units.
Contact Us

Product Parameters

LC parameter description
projectSingle mode (APC)Single mode (PC)Multimode (PC)
insertion loss≤0.2dB≤0.2dB≤0.2dB
return loss≤65dB≤55dB≤55dB
Operating Temperature-40℃~+80℃


reliability test
Test ProjectReliability testing indicators
Temperature and humidity agingTemperature 85oC, 85% relative humidity, 14 day insertion loss variation ≤ 0.1dB
temperature cyclingTemperature -40oC~+75oC, relative humidity 10% -80%, 42 cycles, 14 days insertion loss change ≤ 0.1dB
Immersion in waterTemperature 43oC, pH 5.5, 7-day insertion loss variation ≤ 0.1dB
VibrationAmplitude 1.52mm, frequency 10Hz~55Hz, insertion loss variation ≤ 0.1dB in X, Y, Z directions for 2 hours each
Load bending0.454kg load for 100 cycles (with additional sleeves) insertion loss variation ≤ 0.1dB
Load torsion0.454kg load for 10 cycles (with additional sleeves) insertion loss variation ≤ 0.1dB
Tensile strength0.23kg tensile strength (bare fiber), 1.0kg (with sleeve) insertion loss variation ≤ 0.1dB
to attack1.8m high, three directions, 8 times/direction insertion loss variation ≤ 0.1dB
reference standardBellcore TA-NWT-001209 insertion loss variation ≤ 0.1dB
