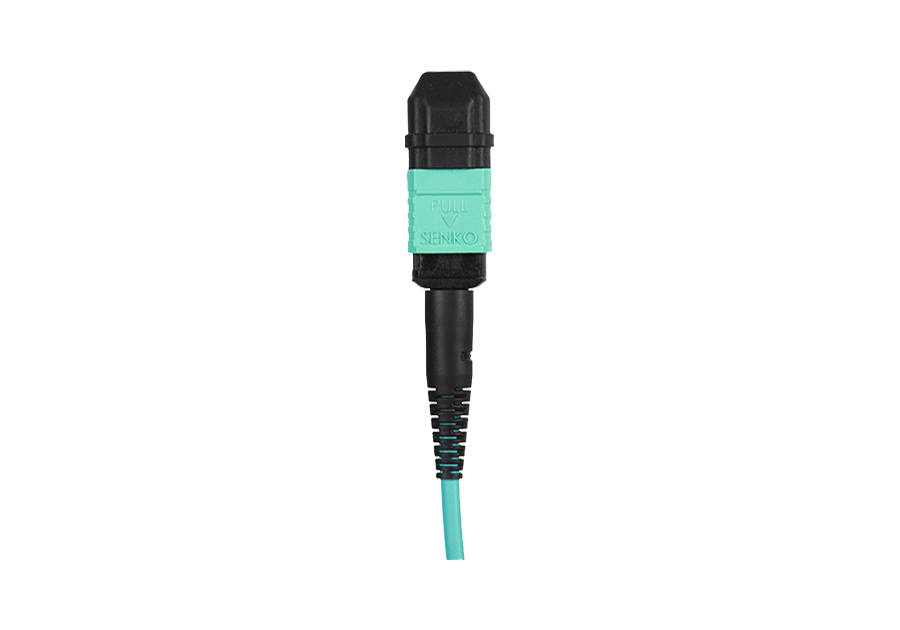

MPO/MTP fiber optic connectors can use male and female connectors.
MPO/MTP multi-core connectors with precision multi-core inserts and push-pull locking structures.

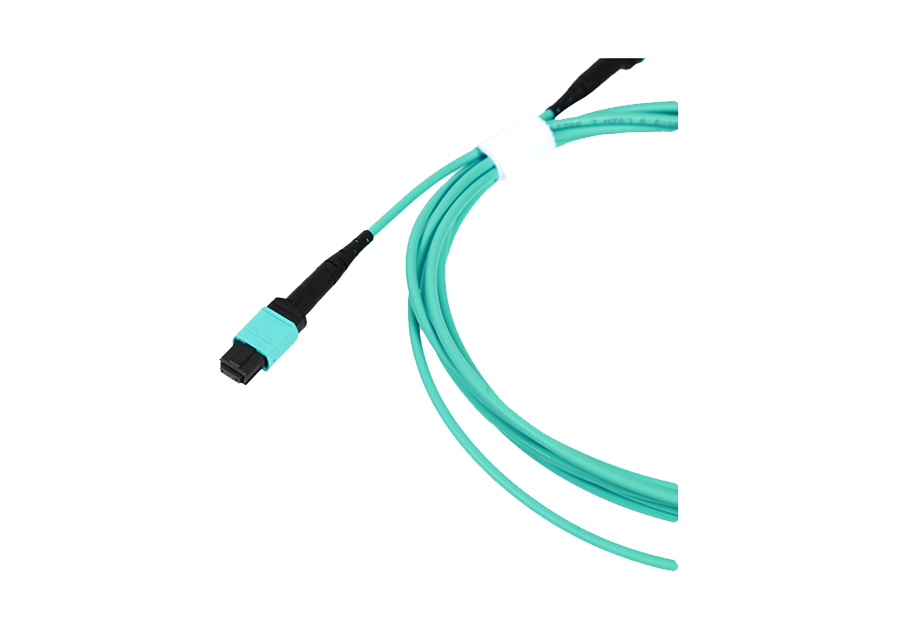

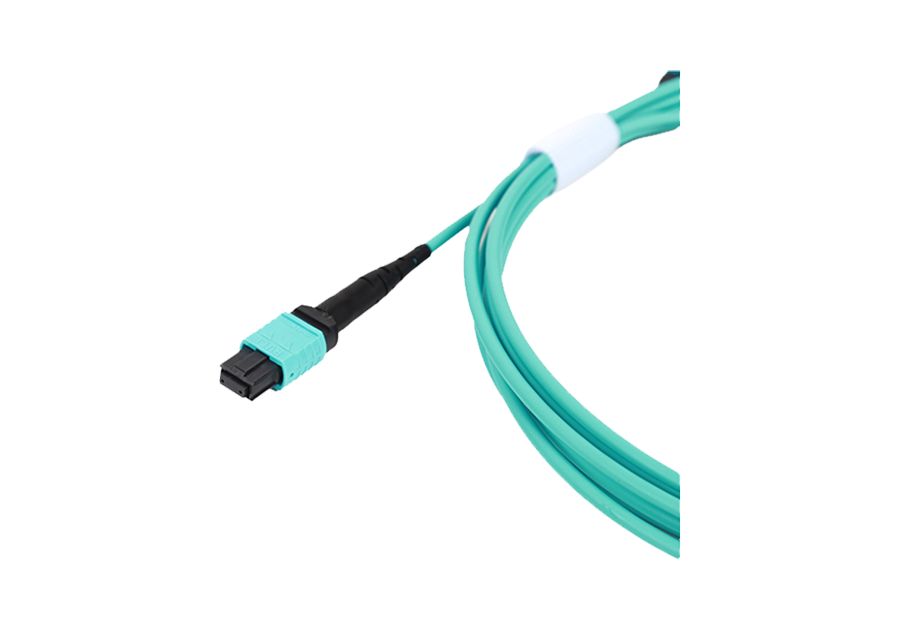

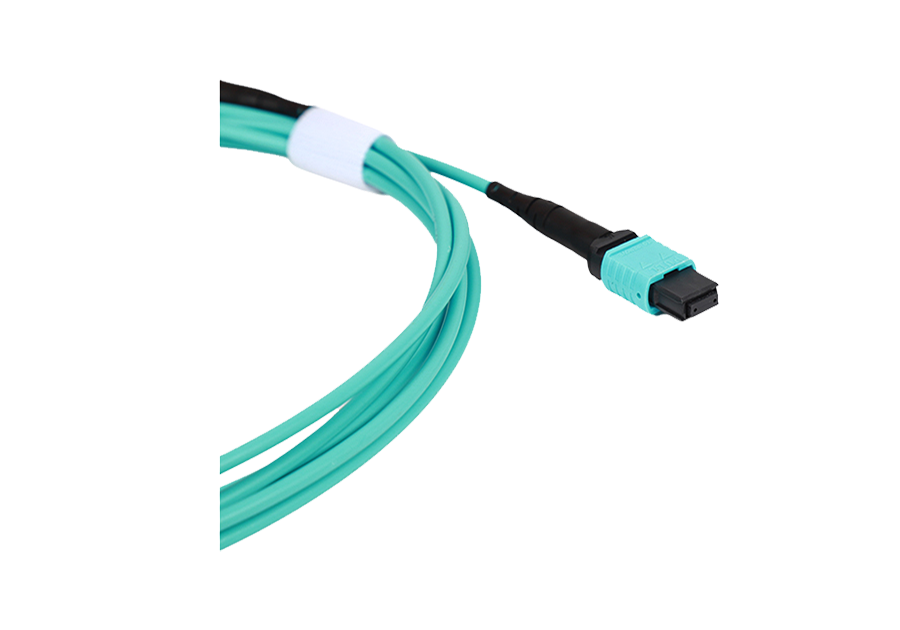

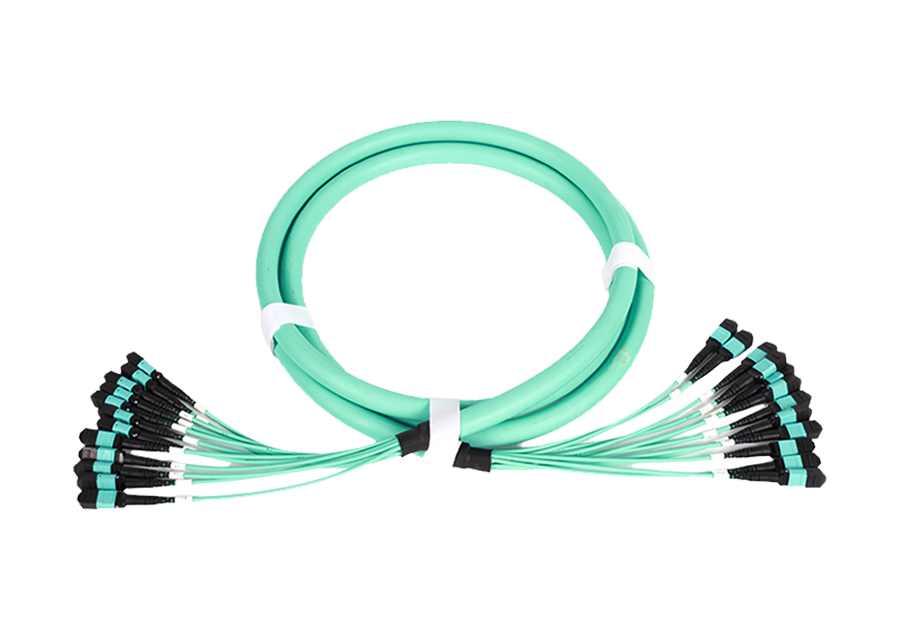

MPO/MTP fiber optic connector jumpers can be selected from ribbon cables or mini bare fibers.
MPO/MTP fiber optic connectors comply with IEC61754, IEC61755&GR-1435-CORE.
MPO from Japan and MTP fiber optic connector plugs from the United States have long plug and unplug life, link exchange, and stable and secure data.
Corning 50/125 OM3/OM410G40G100G imported multi-mode fiber cores from the United States have stable transmission and low fusion optical loss.
The plastic parts of MPO/MTP connectors are made of brand new injection molded materials, while the metal parts are made of copper and stainless steel. They are high temperature resistant, environmentally friendly, sturdy, and durable, without deformation, breakage, or easy detachment, making them widely used.
The outer sheath of its optical cable is made of brand new PVC/LSZH plastic material, which has a bright luster, high toughness, does not fade or crack easily, is environmentally friendly, low smoke, non-toxic, and worry free for export.
The internal tensile aramid of the optical cable is made of DuPont bulletproof vest material from the United States, which is highly flame-retardant, low smoke, non-toxic, and has super toughness. The tensile strength of the fiber core reinforced connector is unparalleled, with a tensile capacity far exceeding 100N.
| optical performance | ||||||
| name | unit | parameter | ||||
| connector | - | Single mode standard plug | Single mode low insertion loss plug core | Multi mode standard plug | Multi mode low insertion loss plug core | |
| insertion loss | typical value | (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
| maximum | (dB) | 0.75 | 0.35 | 0.60 | 0.35 | |
| return loss | (dB) | ≥60 For APC(8°) | ≥20 For PC | |||
| (dB) | ≥50 For PC | - | ||||
| Male/Female Head | steel needle | Public head (with small steel needle); Mother's head (without) | ||||
| tensile strength | (N) | Max 60N | ||||
| vibration | (Hz) | 10 - 55Hz | ||||
| temperature cycling | (℃) | -40℃ ~ +70℃ | ||||
| Geometric parameters of end face | |||
| name | unit | parameter | |
| single mode | multimodal | ||
| X-axis curvature radius | (mm) | Minimum value 2000mm | |
| Y-axis curvature radius | (mm) | Minimum value 5mm | |
| Fiber height | (nm) | 1000~3500 | |
| Overall fiber height difference | (mm) | Maximum value 500 | |
| Height difference between adjacent optical fibers | (mm) | Maximum value 300 | |
| X-axis angle | (°) | -0.2 ~ 0.2 | |
| Y-axis angle | (°) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 | |
| Fiber optic indentation | (nm) | N/A | -100 ~ 200 |
