⑴ Installed in 19 inch racks and cabinets for centralized management of module boxes;

⑵ Achieve an increase in the number of ports through modular design, providing high-density fiber optic connectivity capabilities;

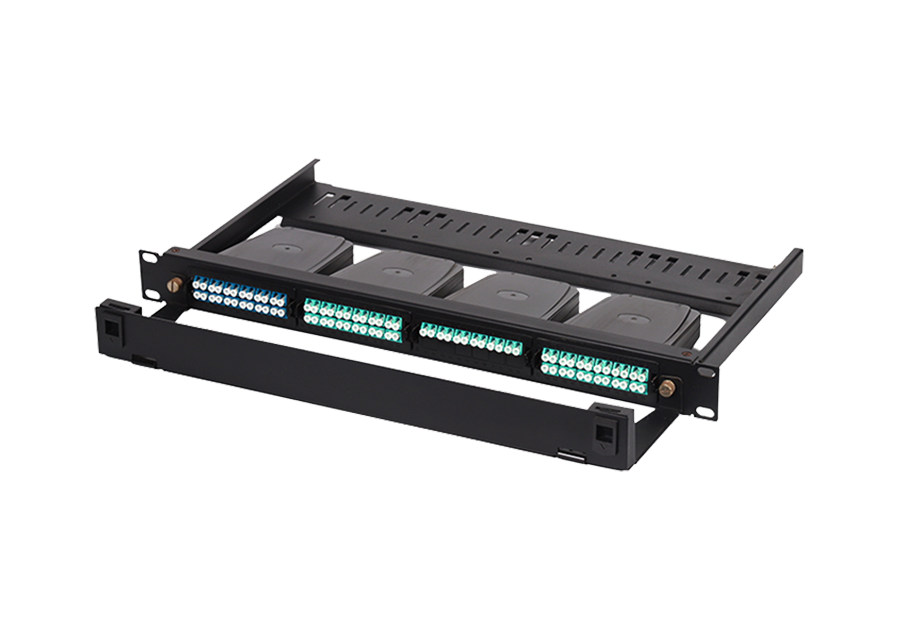

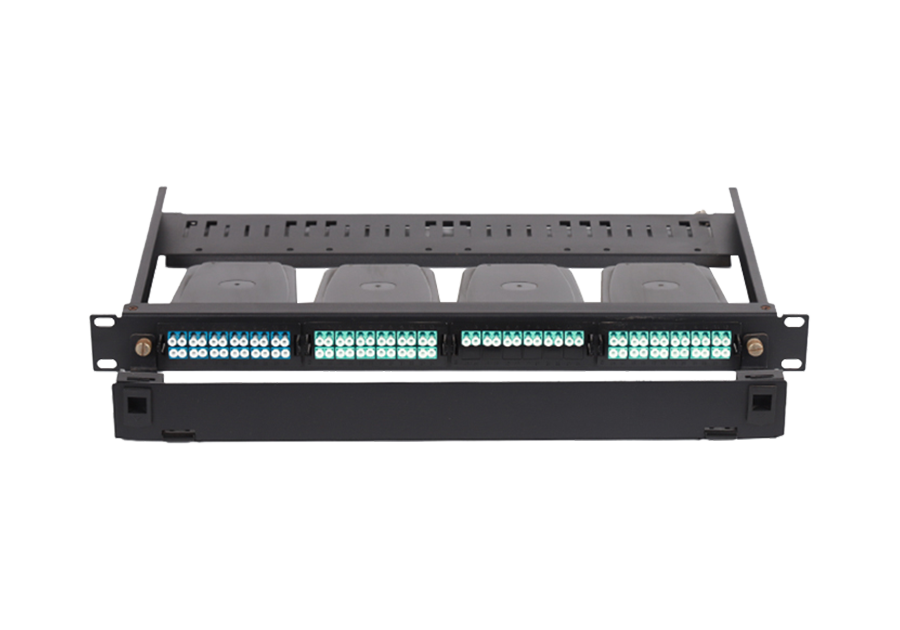

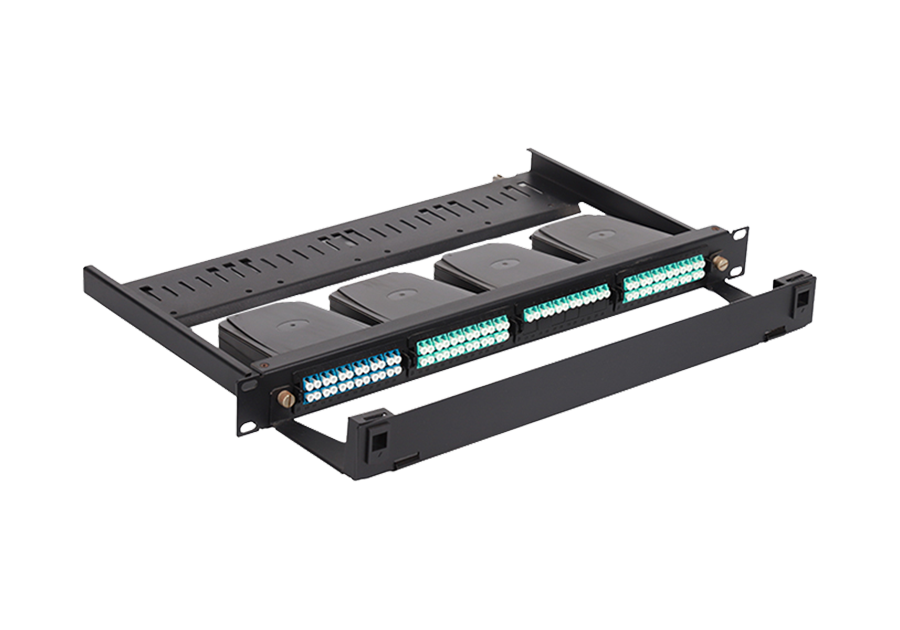

⑶ The MPO 1U fiber optic distribution box can accommodate 4 MPO termination boxes. The maximum number of fiber cores that can be managed by installing duplex LC adapters in the termination box is 96, and the maximum number of fiber cores that can be managed by installing simplex SC adapters in the termination box is 48. If an MPO adapter board is installed, the maximum number of fiber cores that can be managed is 288;

⑷The MPO 2U fiber optic distribution box can install 8 MPO pre termination boxes. The maximum number of fiber cores that can be managed by installing duplex LC adapters in the termination box is 192, and the maximum number of fiber cores that can be managed by installing simplex SC adapters in the termination box is 96. If an MPO adapter board is installed, the maximum number of fiber cores that can be managed is 576;

⑸The MPO 3U fiber optic distribution box can install 12 MPO pre termination boxes. The maximum number of fiber cores that can be managed by installing LC adapters in the termination box is 288, and the maximum number of fiber cores that can be managed by installing simplex SC adapters in the termination box is 144. If MPO adapters are installed, the maximum number of fiber cores that can be managed is 864;

⑹Made of high-quality cold-rolled steel plates;

⑺The board undergoes strict degreasing, acid washing, rust prevention phosphating, and pure water cleaning before being electrostatically sprayed with a thickness of 80 μ m-100 μ m, in compliance with the European ROHS environmental protection standard;

⑻The design of fiber optic distribution frame includes cable management frame and label strip;

⑼The advantages of easy installation and management of the distribution frame are as follows:;

⑽ is more than four times the density of traditional melt fiber patch panels, greatly saving cabinet space, improving cabinet utilization, and creating value for data center construction;

⑾ Adopting a modular structure for easy upgrade and maintenance;

⑿Including 1U/2U/3U cable rack design
