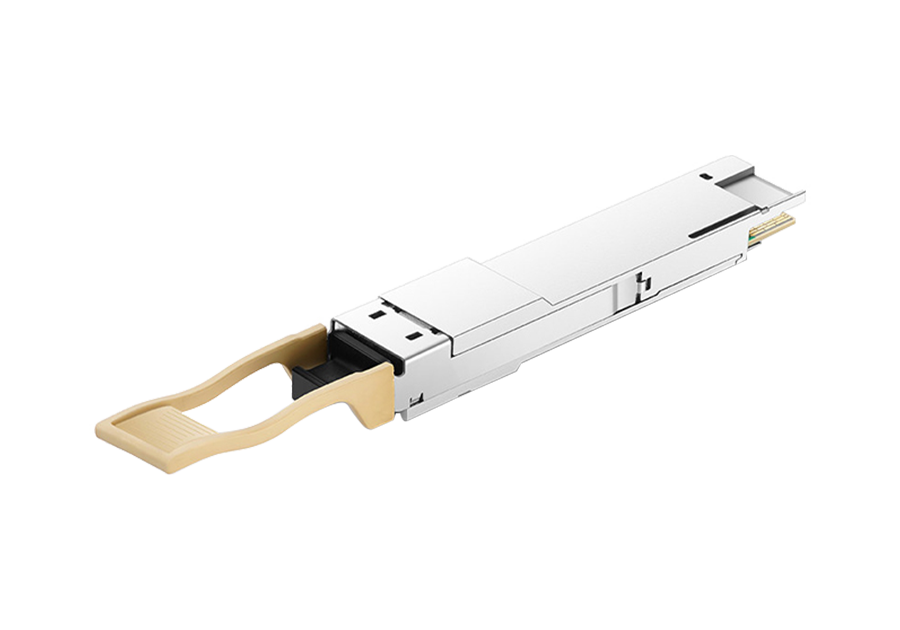

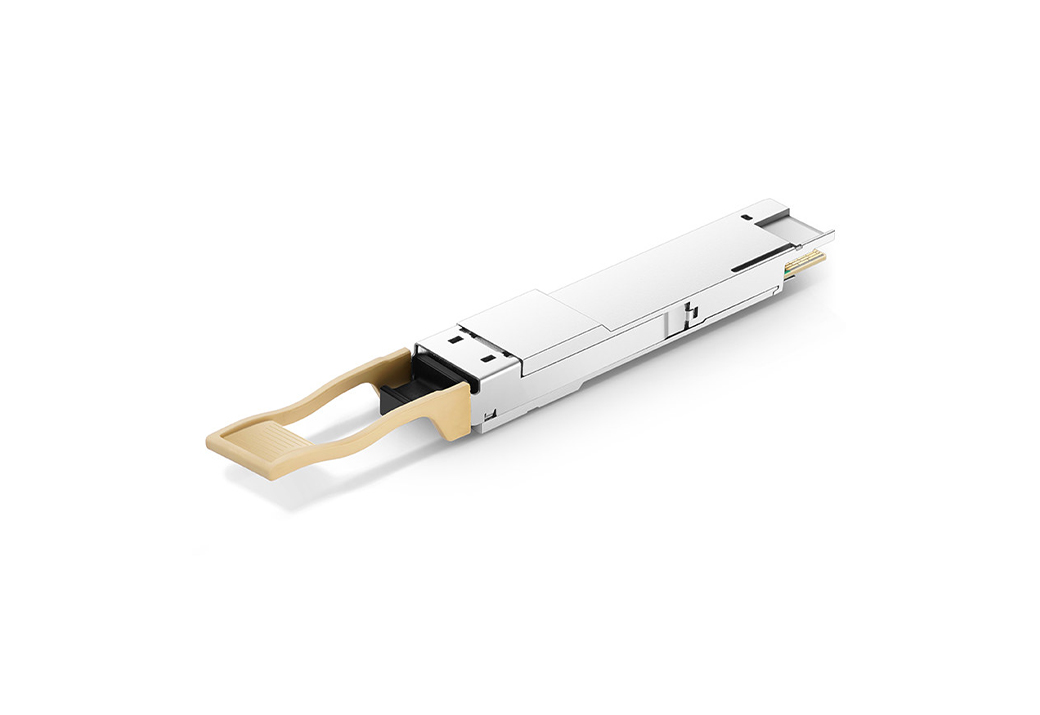

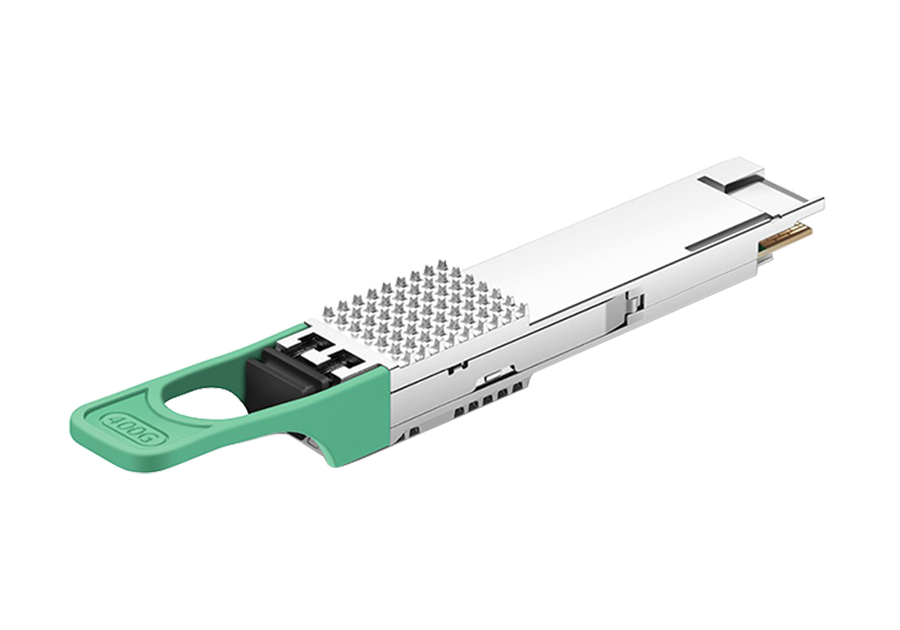

Product Features

•Hot swappable QSFP-DD external dimensions

•The temperature range of the shell is from 0 ℃ to+70 ℃

•The maximum link length on OM4 is 100m

•Fiber optic with KP4 FEC+3.3V single power supply

• Power consumption<10W

• Commercial working shell temperature: 0 ° C to+70 ° C

•MPO-16 APC connector

• Compliant with RoHS standards

application

•400G 100m on OM4 with FEC

Product Features

•Adaptive Tx input balancing

• Programmable Rx output amplitude

•Programmable Rx output front cursor

• Programmable Rx output cursor

• Power supply voltage monitoring (DDM-Voltage)

•Transceiver shell temperature monitoring (DDM_Temperature)

• Tx transmission optical power monitoring for each channel (DDM_TxPower)

•Monitoring of Tx bias current for each channel (DDM_TxBias)

•Rx receiving optical power monitoring for each channel (DDM-RxPower)

•Warning and alert indications for each DDM function

•Tx and Rx LOL and LOS indications

•Tx fault indication

• Host and line side loopback function

• Host and line side PRBS generator and checker functions

•CDB firmware upgrade function

•Multi functional diagnostic monitoring (VDM) function (optional, additional power consumption)

•Other functions defined in CMIS

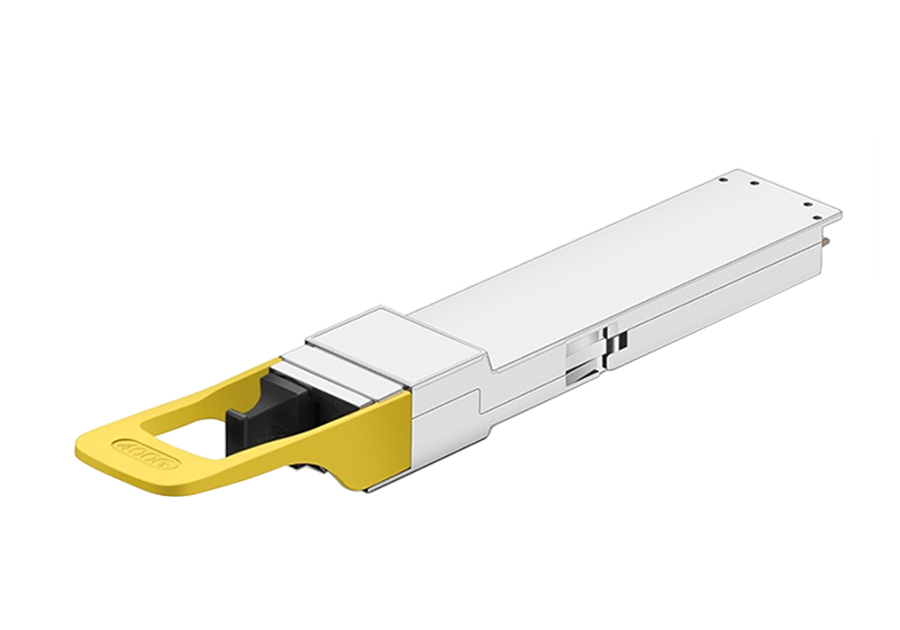

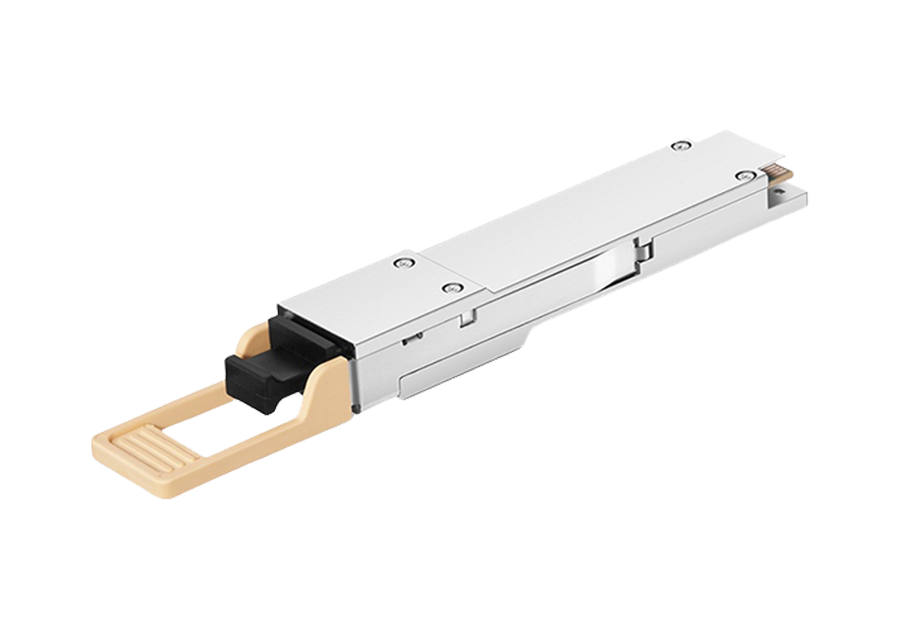

Product Features

• Supports IB and ETH

• Up to 106.25

•Realize Gbps data rate per channel through PAM4 modulation

•4 duplex channel transmitters and receivers

•4x100G PAM4 SIP modulator

•Single MPO-12 connector socket compatible with optical interface

• Single+3.3V power supply

•Hot swappable OSFP RHS external dimensions

•The maximum link length on 12 core MPO SM fiber is 500m

•Low power consumption:<9W

• Working temperature range: 0 ℃~+70 ℃

•International Level 1 Laser Safety Certification

• Compliant with RoHS 6.0

application

•400G Ethernet

• Unlimited broadband support

• Connection between switches and routers

• Data center

• Other 400G interconnects

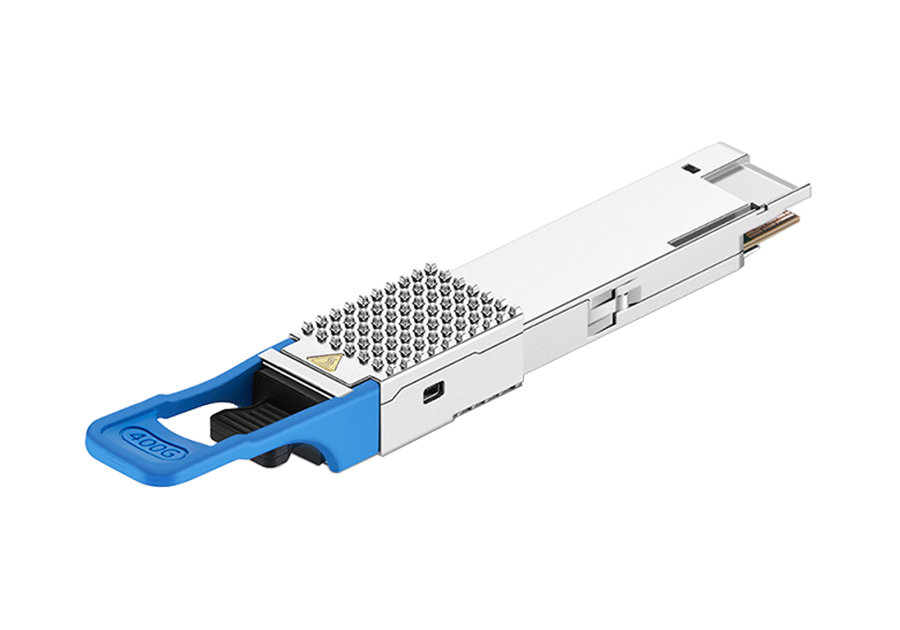

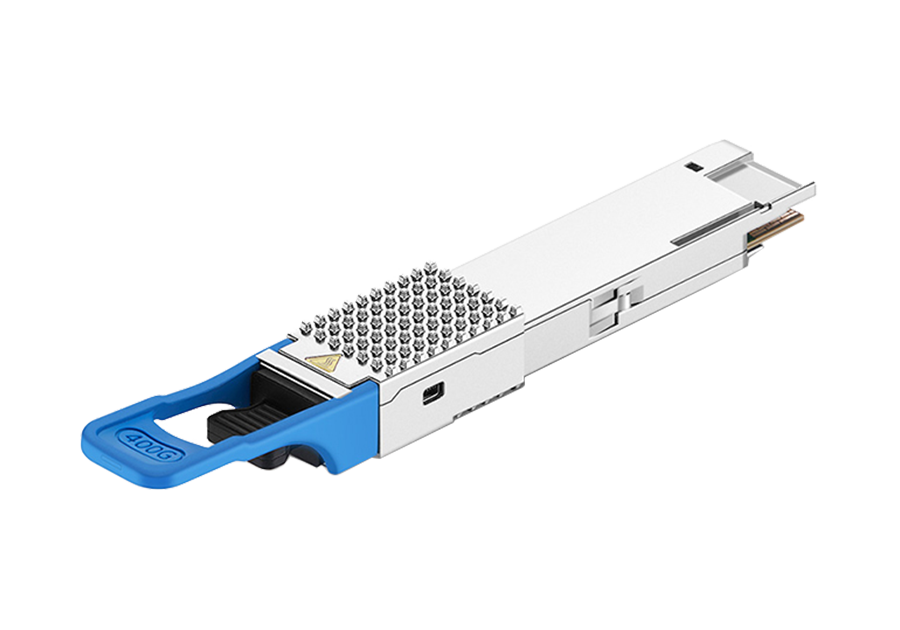

Product Features

• Aggregation mode

•400GBASE-DR4 compatible with 4x 53.125GBd PAM4

•400GAUI-8 is compatible with 8x 26.5625 GBd PAM4

• Branch mode

•4x 100GBASE-DR compatible

•53.125GBd PAM4 100GAUI-2 compatible

•2x 26.5625 GBd PAM4

•QSFP-DD MSA compatible

•MPO-12 connector, 8 ° angled end face

• Power consumption<12 W

•Working temperature: 0~70 ℃

•CMIS 4.0 Management Interface

application

•Data Center 400GE 500m SMF Link

•400GE to 4x 100GE branches, exceeding 500m

•Switch/router interconnection

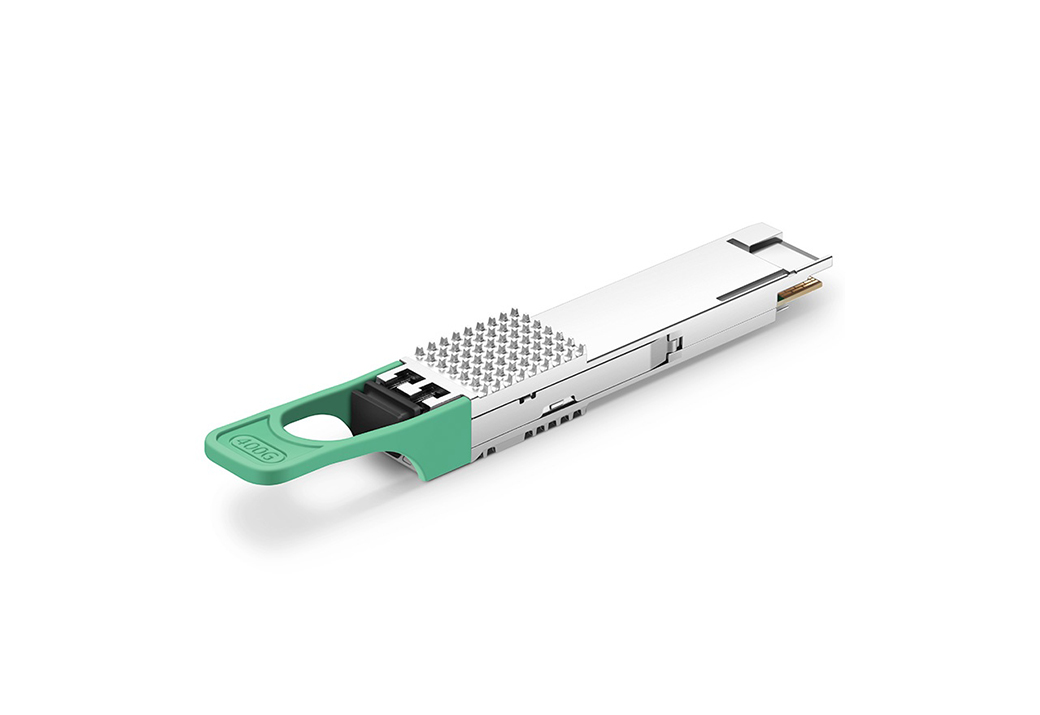

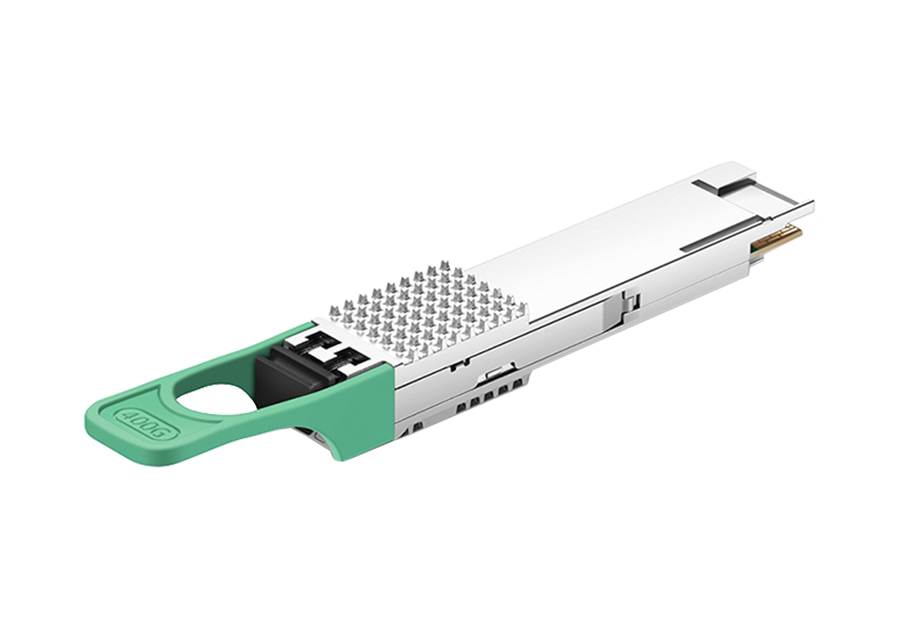

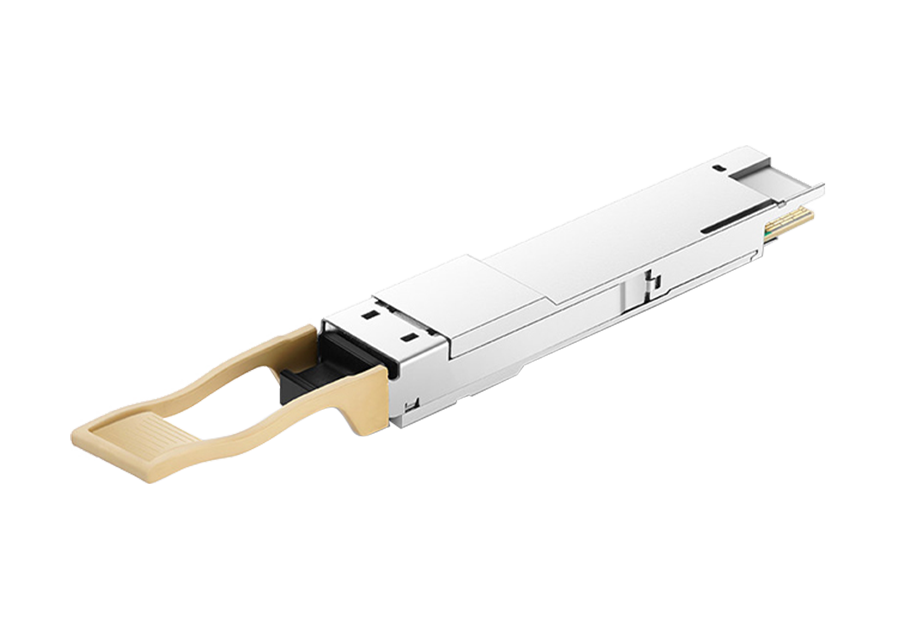

Product Features

• Complies with QSFP-DD MSA

•Compliant with 400G FR4 specification in 100G Lambda MSA

•4 CWDM channel MUX/DEMUX designs

•8x53.125Gb/s PAM4 electrical interface (400GAUI-8)

• Maximum power consumption of 12W

•LC duplex connector

•Single mode fiber optic transmission with FEC can reach a distance of up to 2 kilometers

• Working temperature: 0~70 ℃

•Single 3.3V power supply

• Compliant with RoHS-6

Application

•400G Ethernet

• Data center applications

• Enterprise network

Compliance

• QSFP-DD MSA

•400G-FR4 Technical Specification

• CMIS Rev4.0

•Compliant with RoHS

• GR-468-CORE
